Professional XPS Backer Board Manufacturer
Waterproof, lightweight, and easy-to-cut extruded polystyrene boards for tile underlayment, wall insulation, and wet-area construction.
Waterproof, lightweight, and easy-to-cut extruded polystyrene boards for tile underlayment, wall insulation, and wet-area construction.
Engineered for demanding construction environments

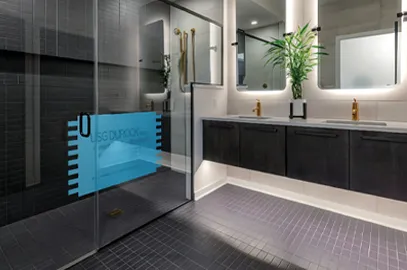

Closed-cell structure with <0.3% water absorption. Ideal for wet areas, shower bases, and exterior applications.
At 28–45 kg/m³ density, XPS boards are easy to transport, handle, and install — reducing labor cost.
Score and snap with a utility knife. No dust, no special tools. Clean edges every time.
Low thermal conductivity (0.028–0.034 W/m·K) provides excellent insulation for walls and floors.
150–700 kPa range to meet different load-bearing requirements, from residential to commercial.
Available in thicknesses from 4mm to 20mm, custom dimensions and surface finishes on request.
Conforming to ASTM C578, EN 13164, and GB/T standards
| Parameter | Value Range | Test Standard |
|---|---|---|
| Density | 28 – 45 kg/m³ | ASTM C578 Type IV / X |
| Compressive Strength | 150 – 700 kPa | ASTM D1621 / EN 826 |
| Thermal Conductivity | 0.028 – 0.034 W/(m·K) | ASTM C518 / EN 12667 |
| Water Absorption (vol) | < 0.3% | ASTM C272 / EN 12087 |
| Dimensional Stability | < 2% @ 70°C | ASTM D2126 / EN 1604 |
| Fire Classification | B1 / B2 (EN) / Class A (ASTM) | EN 13501-1 / ASTM E84 |
| Available Thicknesses | 4, 6, 10, 12, 20 mm | Custom available |
| Standard Sheet Sizes | 600×1200, 600×1250, 1200×2400 mm | Custom available |
| Surface Options | Smooth, embossed, non-woven fabric laminated | On request |
| Edge Profile | Square, shiplap, tongue & groove | On request |

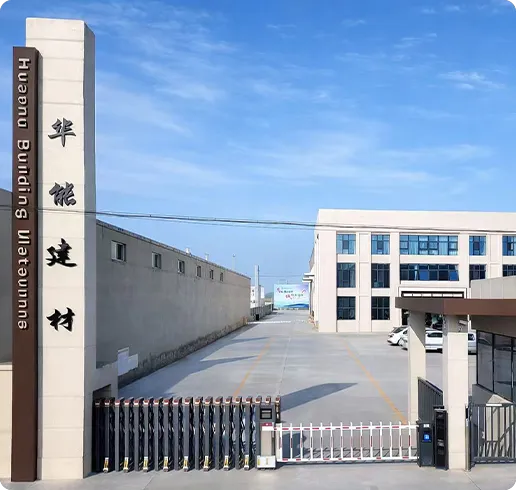

Modern production lines with consistent quality control
Our production facility is equipped with advanced XPS extrusion lines featuring CO₂ foaming technology — environmentally friendly and delivering consistent board quality across every batch.
We maintain strict QC protocols from raw material inspection through to finished product testing, ensuring every shipment meets the specifications you require.
Years Experience
Export Countries
m³ Annual Capacity
We respond to all inquiries within 24 hours. Please include your target specifications and quantity for a fast quotation.
